1. Remove the front lower arm..

2. Inspect the front lower arm for bending or damage, and the front lower arm ball joint for excessive looseness.

If there is any malfunction, replace the front lower arm.

3. Rotate the front lower arm ball joint stud 5 times

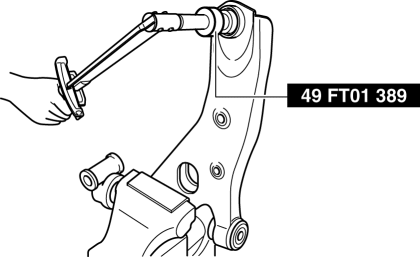

. Install the SST

to the front lower arm ball joint stud, measure the rotational torque using a torque wrench.

If not within the specification, replace the front lower arm.

Front lower arm ball joint stud starting torque

18 N·m {1.8 kgf·m,13 ft·lbf} max.

Front lower arm ball joint stud rotational torque

3.2 N·m {33 kgf·cm,28 in·lbf} max.
