Mazda CX-5 Service & Repair Manual: Front Heat Duct Removal/Installation

Mazda CX-5 Service & Repair Manual / HVAC / General / Front Heat Duct Removal/Installation

1. Disconnect the negative battery cable..

2. Remove the following parts:

a. Dashboard under cover.

b. Side wall.

c. Glove compartment.

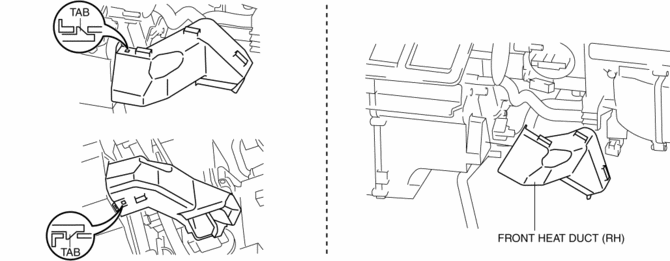

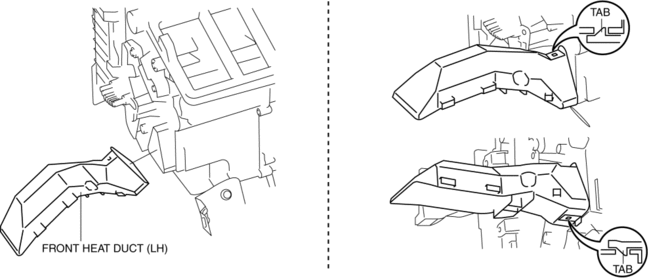

3. Detach the tab and remove the front heat duct.

LH


RH


4. Install in the reverse order of removal.
