Mazda CX-5 Service & Repair Manual: Front Fog Light Bulb Removal/Installation

Mazda CX-5 Service & Repair Manual / Body / Lighting & Horn / Exterior / Front Fog Light Bulb Removal/Installation

1. Disconnect the negative battery cable..

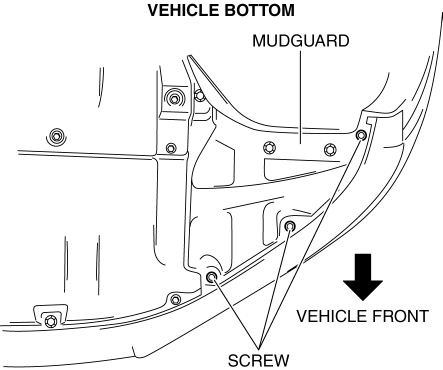

2. Remove the mudguard screws.

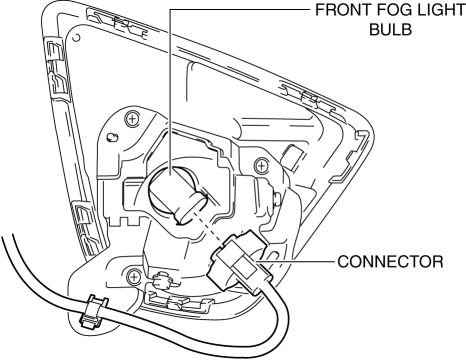

3. Disconnect the connector.

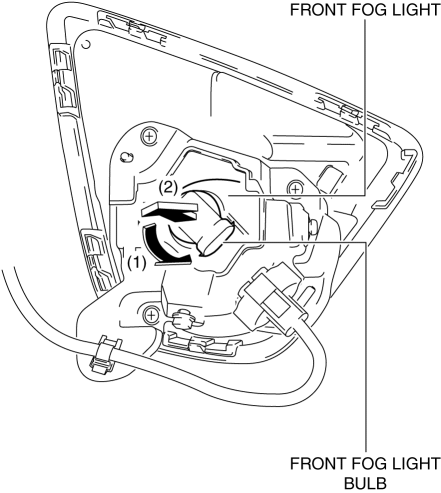

4. Rotate the front fog light bulb in the direction of the arrow (1) shown in the figure and remove it from the front fog light in the direction of the arrow (2) shown in the figure.


5. Install in the reverse order of removal.

Front Fog Light Aiming
NOTE: Perform front fog light aiming if any of the following work is performed. Front fog light replacement Work that can affect vehicle height such as suspension repla ...

Front Fog Light Removal/Installation
1. Disconnect the negative battery cable.. 2. Remove the screws and bolt. 3. Pull up the front under cover No.1 and remove the mudguard screw shown in the figure. 4. Disconnect the con ...
