Mazda CX-5 Service & Repair Manual: Front Fender Panel Removal/Installation

Mazda CX-5 Service & Repair Manual / Body / Body Exterior, Frame / General / Front Fender Panel Removal/Installation

1. Disconnect the negative battery cable..

2. Remove the following parts:

a. Front bumper.

b. Front combination light.

c. Front bumper slider.

d. Front over fender.

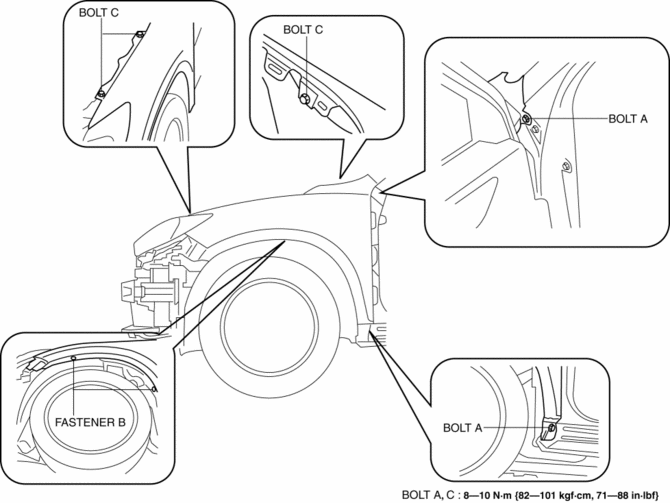

3. Remove bolts A and fasteners B.


4. Remove bolts C.

5. Remove the front fender panel.

6. Install in the reverse order of removal.

7. Adjust the headlight aiming..
