Mazda CX-5 Service & Repair Manual: Front Door Speaker Inspection
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Inner garnish.
b. Front door trim.
3. Disconnect the front door speaker connector..

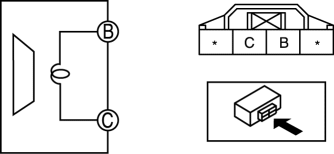

4. Verify that the resistance and continuity between the front door speaker terminals is as indicated in the table.
-
If not as indicated in the table, replace the front door speaker.

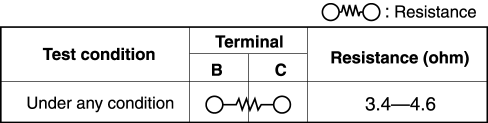

Without Bose®

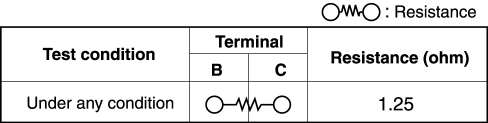

With Bose®
Front Center Speaker Removal/Installation
1. Disconnect the negative battery cable..
2. Remove the center speaker grille..
3. Remove the screws.
4. Remove the front center speaker.
5. Disconnect the connector.
6. Install in ...
Front Door Speaker Removal/Installation
Without Bose®
NOTE:
If the procedure is performed while holding the front door speaker cone,
it could deform the cone causing a malfunction. Therefore, perform the procedure
while hold ...
