Mazda CX-5 Service & Repair Manual: Front Door Latch Switch Inspection

Mazda CX-5 Service & Repair Manual / Body / Doors/Lids & Hood/Trunk / Front Door Latch Switch Inspection

1. Perform the front door glass preparation..

2. Disconnect the negative battery cable..

3. Remove the following parts:

a. Inner garnish.

b. Front door trim.

c. Front door glass.

d. Front door module panel.

e. Front door key cylinder.

f. Front door latch and lock actuator.

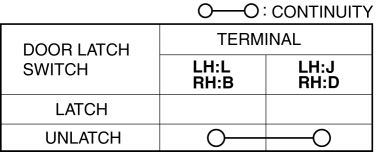

4. Verify that the continuity is as indicated in the table.

If not as indicated in the table, replace the front door latch and lock actuator.

NOTE:

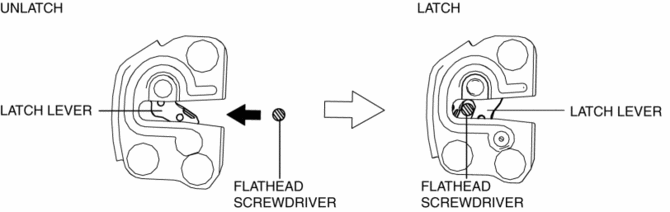

When inspecting the latch side of the front door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

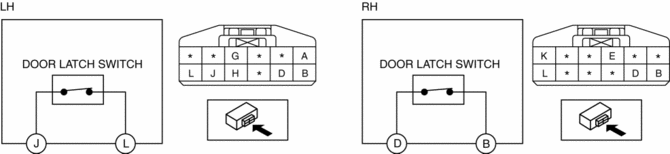

Front Door Latch Switch

Purpose, Function Switches on/off in conjunction with the latch lever rotation, and detects the front door open/closed condition by the voltage which is changed by the rear body control m ...
