Mazda CX-5 Service & Repair Manual: Front Combination Light

Purpose

Function

Construction

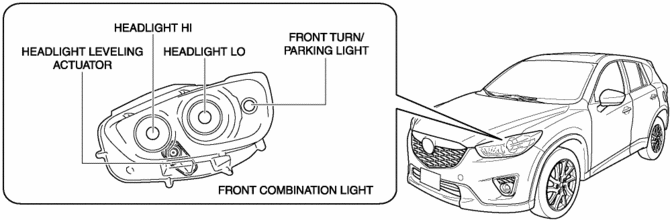

Halogen type

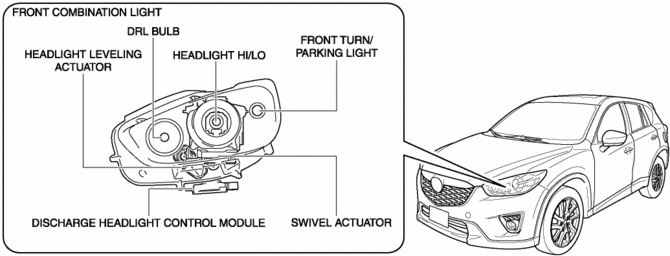

Discharge type


Operation

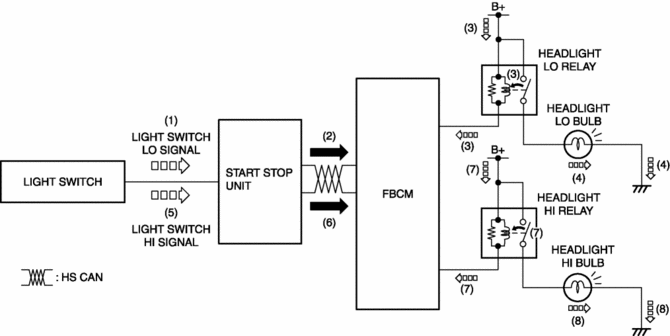

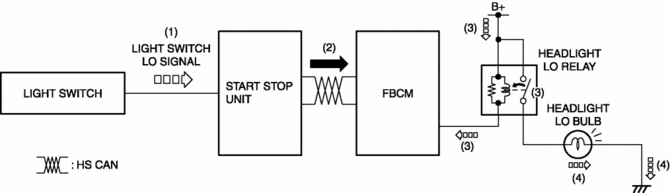

Headlight LO


Headlight HI

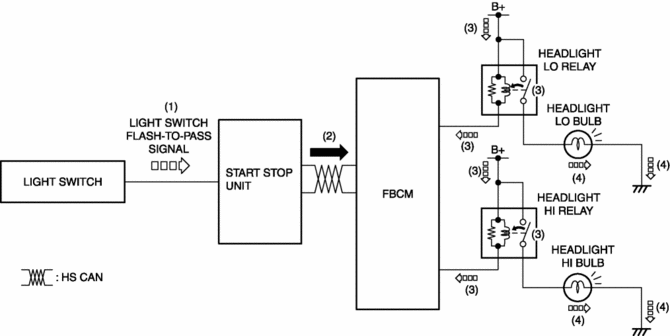

Flash-to pass


DRL system

Parking light

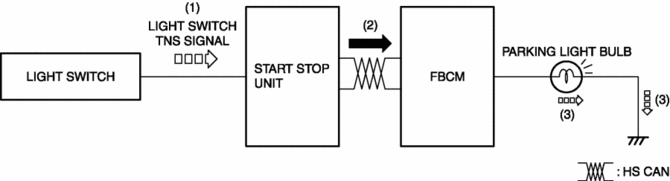

1. When the light switch is operated to the TNS position, a light switch TNS signal is input to the start stop unit.

2. The start stop unit sends the light switch TNS signal to the front body control module (FBCM) as a CAN signal.

3. When the front body control module (FBCM) receives the light switch TNS signal, the parking light bulbs are illuminated.


Front turn light

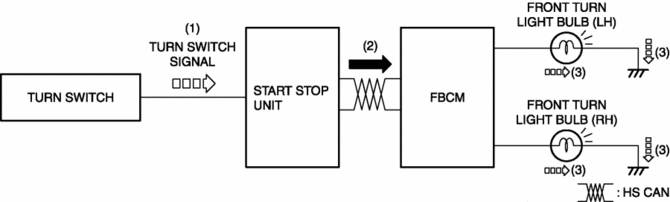

1. When the turn switch is operated to the LH or RH position, a turn switch LH or RH signal is input to the start stop unit.

2. The start stop unit sends the turn switch LH or RH signal to the front body control module (FBCM) as a CAN signal.

3. When the front body control module (FBCM) receives the turn switch LH or RH signal, the front turn light bulb (LH) or (RH) is illuminated.


Front turn light (hazard warning)

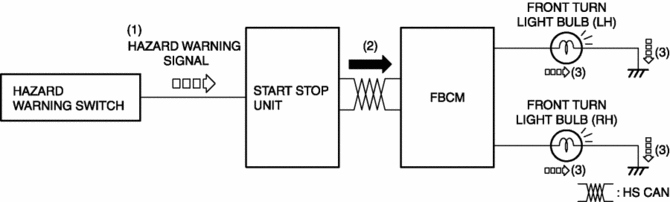

1. When the hazard warning switch is turned on, a hazard signal is input to the start stop unit.

2. The start stop unit sends a hazard warning signal to the front body control module (FBCM).

3. When the front body control module (FBCM) receives the hazard warning signal, the front turn lights (RH) and (LH) flash.


Headlight leveling actuator

Swivel actuator (with headlight auto leveling system)

Fail-safe

Exterior Lighting Systems
Outline Projector type headlights have been adopted to the front combination lights. Auto-light system has been adopted in which TNS and headlights automatically and optimally illumi ...

Front Combination Light Disassembly/Assembly
1. Disassemble in the order shown in the figure. Halogen type 1 Short cord (See Short Cord Removal Note.) 2 Parking/Front turn light bulb ...
