Mazda CX-5 Service & Repair Manual: Front Center Speaker Removal/Installation
1. Disconnect the negative battery cable..
2. Remove the center speaker grille..

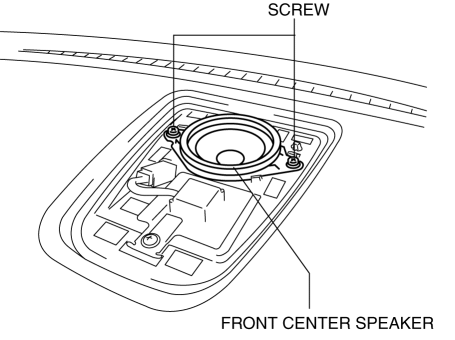

3. Remove the screws.
4. Remove the front center speaker.

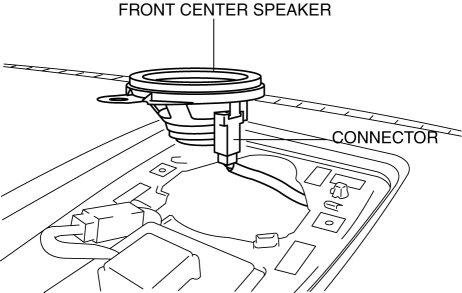

5. Disconnect the connector.
6. Install in the reverse order of removal.
Front Center Speaker Inspection
1. Disconnect the negative battery cable..
2. Remove the center speaker grille..
3. Remove the front center speaker..
4. Verify that the resistance between the front center speaker terminals is ...
Front Door Speaker Inspection
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Inner garnish.
b. Front door trim.
3. Disconnect the front door speaker connector..
4. Verify that the resistance ...
