Mazda CX-5 Service & Repair Manual: Front Center Speaker Inspection
1. Disconnect the negative battery cable..
2. Remove the center speaker grille..
3. Remove the front center speaker..

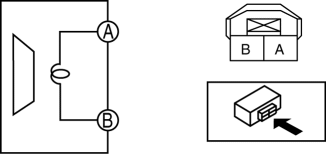

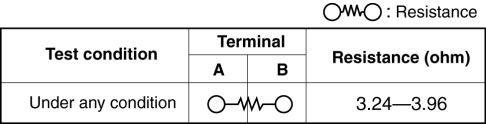

4. Verify that the resistance between the front center speaker terminals is as indicated in the table.
-
If not as indicated in the table, replace the front center speaker.
