Purpose, Function

An angular ball bearing, with a low rotational resistance, has been adopted, improving driveability.
A unit bearing that does not require pre-load setting has been adopted, improving serviceability.

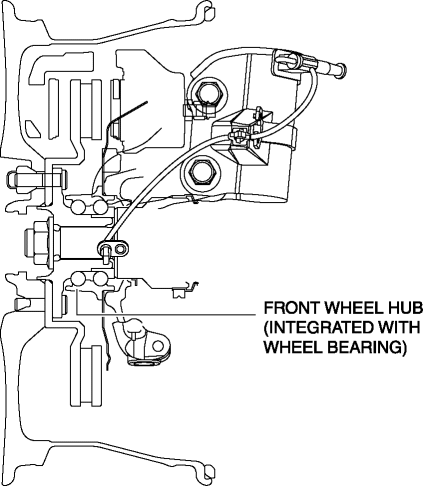

Cross-Sectional View

Front Lower Arm Inspection

1. Remove the front lower arm.. 2. Inspect the front lower arm for bending or damage, and the front lower arm ball joint for excessive looseness. If there is any malfunction, replace the ...
