Mazda CX-5 Service & Repair Manual: Fresh Air Duct
Purpose, Function
-
Conducts fresh air from outside the engine compartment.
-
Increases air density by taking fresh air, which is cooler than the engine compartment, to enhance the charging efficiency, ensuring the combustion stability.
Construction
-

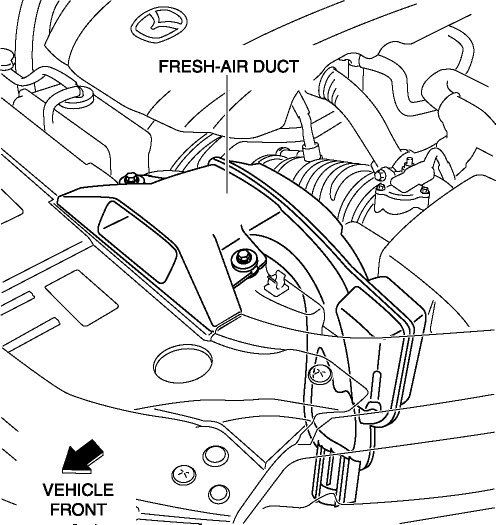

The fresh-air duct is installed to the air cleaner.
Engine
Special Features
For SKYACTIV-G 2.0, the following is performed to lower fuel consumption.
Improvement of mechanical resistance loss
Narrowed down crankshaft journ ...
Hydraulic Variable Valve Timing Actuator Inspection
WARNING:
A hot engine can cause severe burns. Turn off the engine and wait until it
is cool before servicing.
CAUTION:
Do not disassemble the hydraulic variable valve timing a ...
