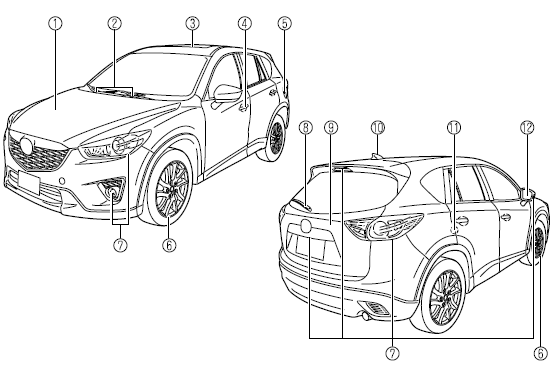

Mazda CX-5 Owners Manual: Exterior Overview
1 Hood
2 Windshield wiper blades
3 Moonroof
4 Doors and keys
5 Fuel-filler lid
6 Wheels and Tires
7 Exterior lights
8 Rear window wiper blade
9 Liftgate
10 Antenna
11 Child safety locks
12 Outside mirror
Interior Equipment (View C)
1 Seat belts
2 SRS curtain air bag
3 Remote fuel-filler lid release
4 Bottle holder
5 Vanity mirror
6 Moonroof switch
7 Overhead lights
8 Rearview mirror
9 Sunvisor
10 Cup holders
...
Essential Safety Equipment
Important information about safety equipment, including seats, seat belt system,
child-restraint systems and SRS air bags. ...
Other materials:
Front Seat Cushion Frame Removal/Installation
WARNING:
Handling a side air bag improperly can accidentally operate (deploy) the
air bag, which may seriously injure you. Read the service warnings/cautions
in the Workshop Manual before handling the front seat (side air bag integrated)..
If the sliding mechanisms on both side ...
Relay And Fuse Block Middle Cover Disassembly/Assembly
1. Insert a tape-wrapped flathead screwdriver into the service hole in the position
shown in the figure.
2. While pressing the relay and fuse block middle cover tab in the direction
of arrow (1) shown in the figure, pull out the bracket in the direction of arrow
(2) to detach the relay a ...
Splash Shield Removal/Installation
Front
Front splash shield No.1
1. Set the mudguard aside..
2. Remove fasteners A.
3. Remove the front splash shield No.1.
4. Install in the reverse order of removal.
Front splash shield No.2
1. Remove screw B.
2. Remove fasteners C.
3. Remove the front splash shield No.2.
4. ...
