Mazda CX-5 Service & Repair Manual: Engine Oil Solenoid Valve
Purpose, Function
-
The engine oil solenoid valve switches the hydraulic transmission passage in accordance with the driving conditions and the oil pump drive resistance is reduced by controlling oil pump discharging pressure in two steps.
Construction
-

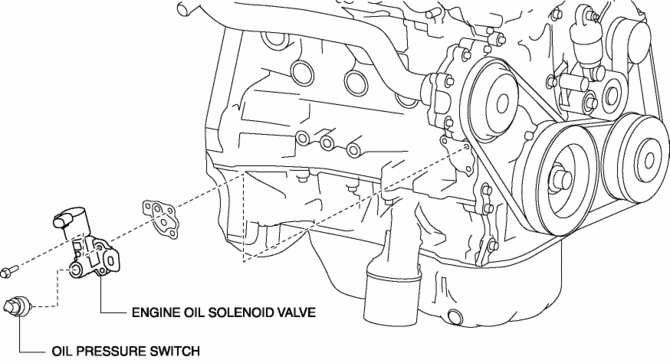

The engine oil solenoid valve is installed on the right side of the cylinder block.
-

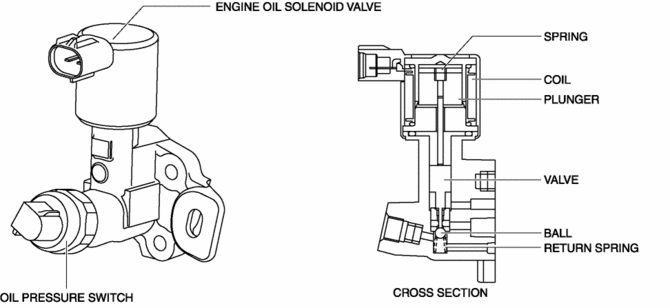

The engine oil solenoid valve has the following parts:
-
A duty drive type has been adopted.
Operation
-

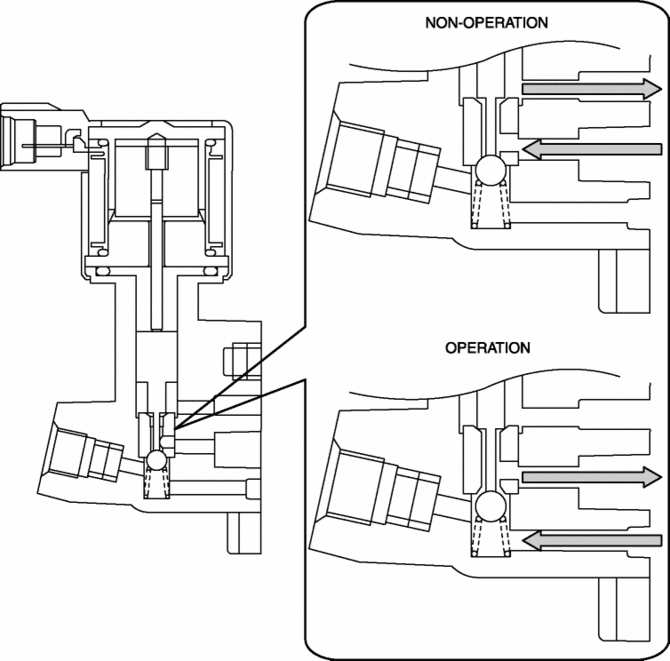

The oil passage in the solenoid valve is switched according to the control signal (duty signal) from the PCM.
Fail-safe
-
Function not equipped.
Engine Oil Solenoid Valve Removal/Installation
WARNING:
Hot engines and engine oil can cause severe burns. Turn off the engine and
wait until it and the engine oil have cooled.
A vehicle that is lifted but not securely supported ...
Front Oil Seal Replacement
WARNING:
A hot engine can cause severe burns. Turn off the engine and wait until it
is cool before servicing.
1. Remove the front under cover No.2..
2. Remove the splash shield..
...
