Mazda CX-5 Service & Repair Manual: Energy Absorbing Form Removal/Installation

Mazda CX-5 Service & Repair Manual / Body / Body Exterior, Frame / General / Energy Absorbing Form Removal/Installation

1. Disconnect the negative battery cable..

2. Remove the seal board upper..

3. Remove the front bumper..

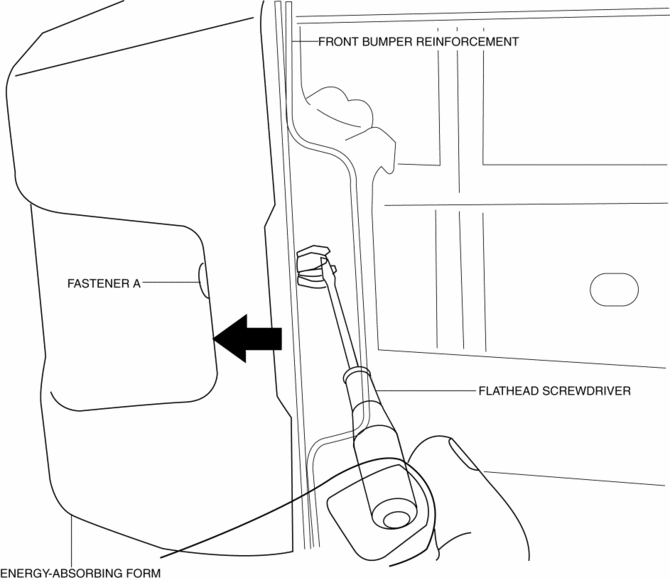

4. Insert the flathead screwdriver shown in the figure, push fasteners A for back side of front bumper reinforcement arrow shown in the figure.

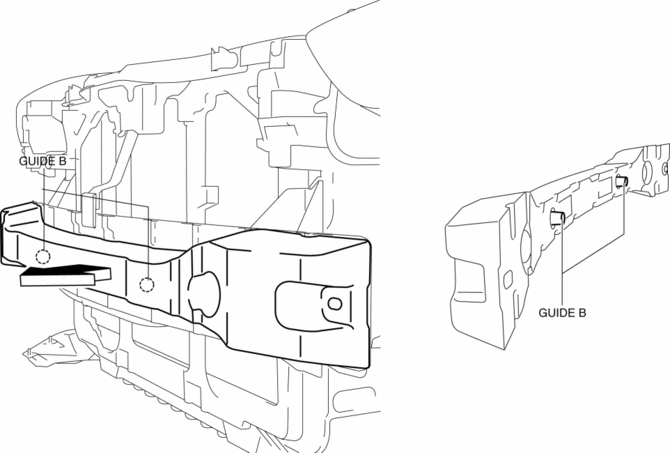

5. Pull the energy-absorbing form in the direction of the arrow shown in the figure while detaching guides B


6. Install in the reverse order of removal.
