Mazda CX-5 Service & Repair Manual: Dumping Sheet Replacement [Water Proof And Rust Preventive]

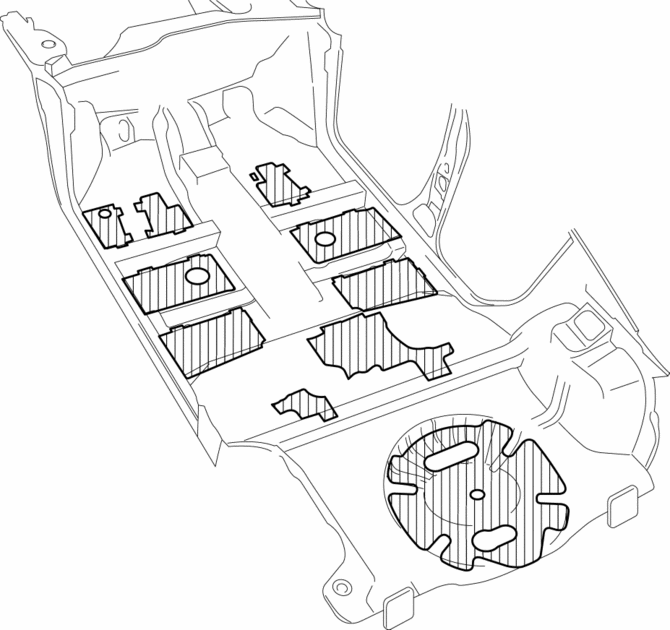

Mazda CX-5 Service & Repair Manual / Body / Body Exterior, Frame / Frame / Dumping Sheet Replacement [Water Proof And Rust Preventive]


Corner Plate Removal [Panel Replacement]
Symbol Mark Removal Procedure 1. Drill the 11 location shown in the figure. 2. Remove the corner plate. ...

Front Body Straight Line Dimensions (1) [Dimensions]
Point symbol Designation Hole diameter or bolt or nut size mm {in} A Cowl panel installation hole ?5 {0.2} ...

Other materials:

Floor Side Panel Removal [Panel Replacement]
Symbol Mark Removal Procedure 1. Drill the 35 locations indicated by (A) shown in the figure, then remove the floor side panel No.1. 2. Drill the 5 locations indicated by (B) shown in the figure. 3. Drill the 4 locations indicated by (C) from rear wheel housing shown in the figure. ...

Windshield Removal
1. Disconnect the negative battery cable.. 2. Remove the following parts: a. Windshield wiper arm and blade. b. Cowl grille. c. Rain sensor (with auto light/wiper system). d. Auto-dimming mirror (with auto-dimming mirror). e. Rearview mirror (without auto-dimming mirror). f. A-pillar t ...

Accelerator Pedal Position (App) Sensor Inspection
Voltage Inspection NOTE: Because the APP sensor is integrated in the accelerator pedal, replacing the APP sensor includes replacement of the accelerator pedal. 1. Connect the M-MDS to the DLC?2. 2. Switch the ignition ON (engine off or on). 3. Verify that the APP sensor output ...
