Mazda CX-5 Service & Repair Manual: Drive Belt Removal/Installation [Skyactiv G 2.0]

Mazda CX-5 Service & Repair Manual / HVAC / A/C / Drive Belt Removal/Installation [Skyactiv G 2.0]

WARNING:

NOTE:

Generator Drive Belt Removal/Installation

CAUTION:

1. Remove the splash shield..

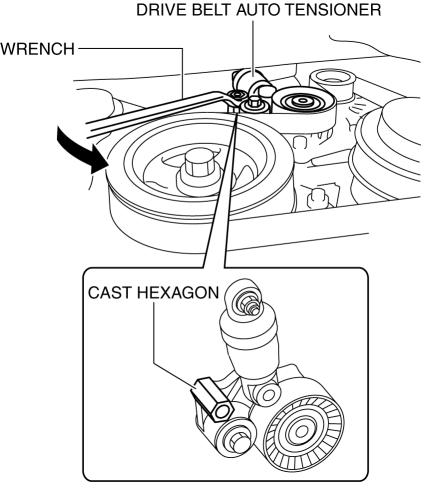

2. Insert a wrench onto the cast hexagon on the drive belt auto tensioner and release the tension by slowly turning in the direction shown in the figure.


3. Remove the generator drive belt.

4. Install the generator drive belt.

5. Rotate the crankshaft pulley clockwise approx. halfway and verify that the generator drive belt is installed correctly.

6. Verify that the indicator part of the cast hexagon on the drive belt auto tensioner is within the normal range..

7. Install the splash shield..

Water Pump Drive Belt

Removal

1. Remove the generator drive belt..

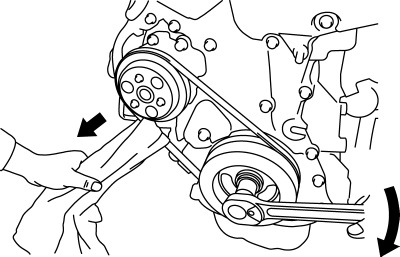

2. Apply a clean cloth to the water pump drive belt as shown in the figure.


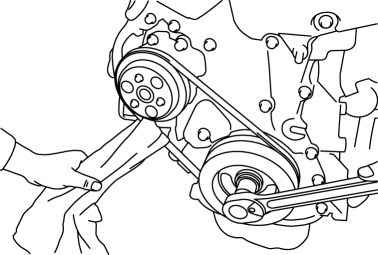

3. Pull the cloth in the direction of the arrow and rotate the crankshaft pulley clockwise.


CAUTION:

NOTE:

4. Remove the water pump drive belt.

Installation

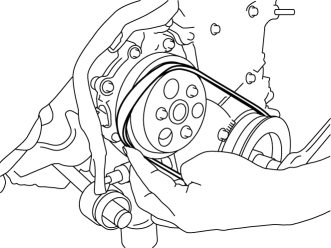

1. Set one side of the water pump drive belt into the groove of the crankshaft pulley.

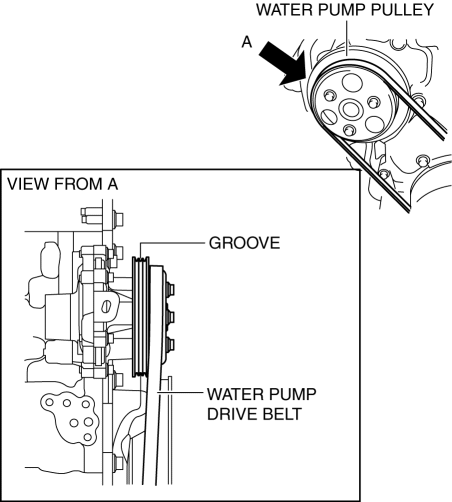

2. Set the other side of the water pump drive belt into the groove of the water pump pulley with the smaller circumference.


CAUTION:

3. Press the drive belt up from the smaller circumference pulley into the groove of the larger circumference pulley, and rotate the crankshaft pulley clockwise.


CAUTION:

4. After drive belt installation, rotate the crankshaft pulley clockwise approx. halfway and verify that the water pump drive belt is installed correctly.

5. Install the generator drive belt..

Drive Belt Inspection [Skyactiv G 2.0]
Generator Drive Belt NOTE: The generator drive belt deflection/tension inspection is not necessary with the adoption of the drive belt auto tensioner. 1. Verify that the indicator pa ...

Drive Belt [Skyactiv G 2.0]
Purpose, Function The drive belt transmits rotation force of the crankshaft pulley to the pulley for the auxiliary parts. Construction The drive belt is installed to the front o ...
