Mazda CX-5 Service & Repair Manual: Door Trim
Purpose/Function
-

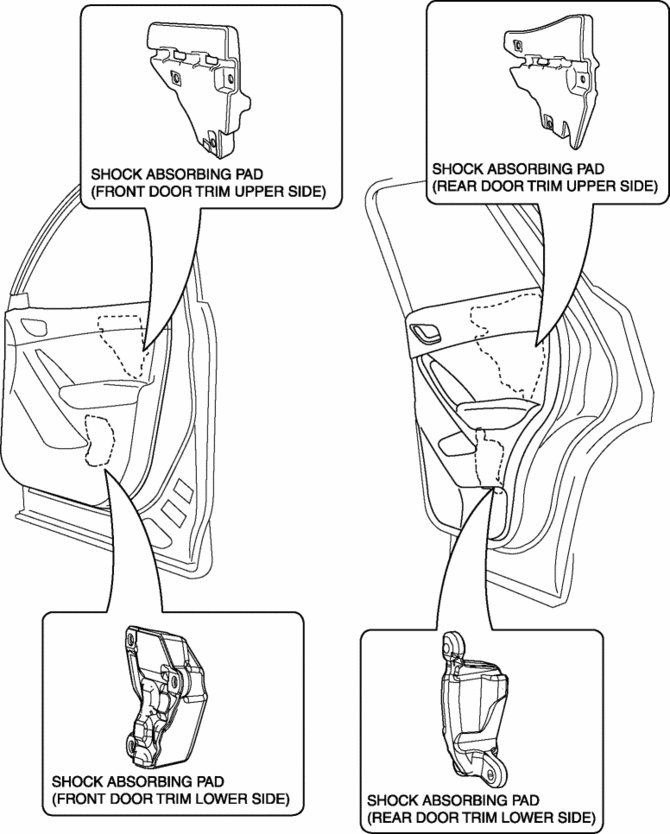

The front and rear door trims are equipped with shock absorbing pads for impulse force relief during a collision.
Construction
-
Shock absorbing pads are installed inside the front and rear door trims.
-
Shock absorbing pads absorb the impulse force during a collision.
Door Module Panel
Purpose, Function
Styrofoam door module panels have been adopted for reducing vehicle weight.
Construction
Styrofoam is applied to the door module panels (shaded areas) durin ...
Doors And Liftgate
Outline
Side impact bars built into the front and rear doors have been adopted.
Door modules have been adopted on the front and rear doors.
Structural view
...
Other materials:
B Pillar Lower Trim Removal/Installation
1. Remove the front scuff plate..
2. Remove the rear scuff plate..
3. Partially peel back the seaming welt.
4. Take the shaded area shown in the figure, and pull the B-pillar lower trim
in the direction of the arrow in the order of (1), (2) while detaching hooks A,
pins B.
5. Take th ...
Air Bag Module And Pre Tensioner Seat Belt Deployment Procedures [Standard Deployment
Control System]
WARNING:
A live (undeployed) air bag module or pre-tensioner seat belt may accidentally
operate (deploy) when it is disposed of and cause serious injury. Do not dispose
of a live (undeployed) air bag module or pre-tensioner seat belt. If the SSTs
(Deployment tool and Adapter harness ...
Side Air Bag Sensor [Standard Deployment Control System]
Purpose
The side air bag sensor detects an impact during a lateral collision.
Function
The side air bag sensor converts the detected impact to an electrical signal.
Construction
The side air bag sensor is built into the crash sensor.
Two side air bag sensors ...
