Mazda CX-5 Service & Repair Manual: Door Module Panel
Purpose, Function
-

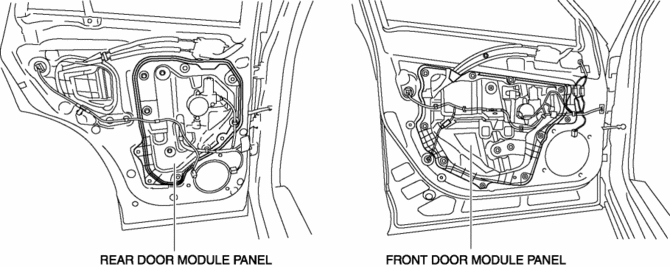

Styrofoam door module panels have been adopted for reducing vehicle weight.
Construction
-

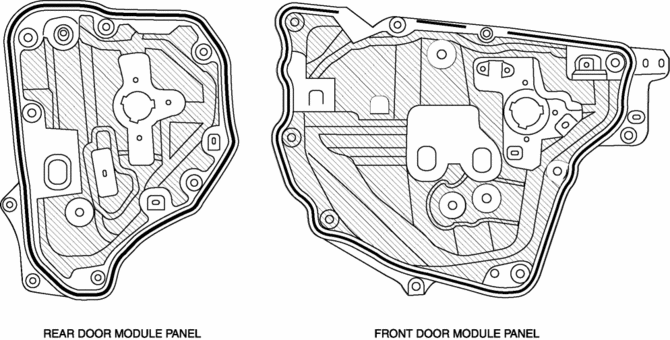

Styrofoam is applied to the door module panels (shaded areas) during manufacture.
Door Ajar Warning Light
Purpose
The door-ajar warning light notifies the driver that any door or the liftgate
is open.
Function
When the instrument cluster receives any of the following signals sent fr ...
Door Trim
Purpose/Function
The front and rear door trims are equipped with shock absorbing pads for
impulse force relief during a collision.
Construction
Shock absorbing pads are installe ...
