Driver's Side

NOTE:

The driver's side door lock switch cannot be removed as a single unit because it is built into the power window main switch. If the driver's side door lock switch is replaced, replace the power window main switch..

Passenger's Side

1. Disconnect the negative battery cable..

2. Remove the power window subswitch cover..

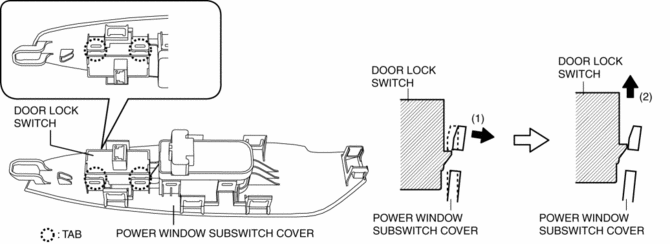

3. While pulling the power window subswitch cover in the direction of arrow (1) shown in the figure, pull the door lock switch in the direction of arrow (2) shown in the figure, and detach the door lock switch tabs from the power window subswitch cover.

4. Detach all of the door lock switch tabs from the power window switch cover and remove the door lock switch.

5. Install in the reverse order of removal.

Door Lock Switch Inspection

Driver's Side 1. Disconnect the negative battery cable.. 2. Remove the door lock switch.. 3. Verify that the continuity is as indicated in the table. If the continuity is not ...
