Mazda CX-5 Service & Repair Manual: Door Lock Switch Inspection
Driver's Side
1. Disconnect the negative battery cable..
2. Remove the door lock switch..

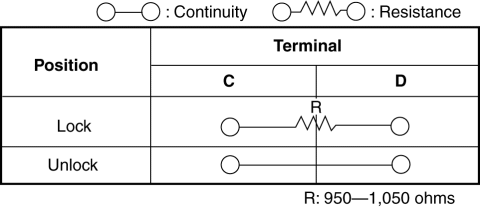

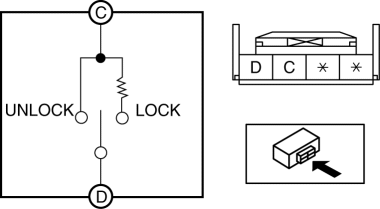

3. Verify that the continuity is as indicated in the table.
-
If the continuity is not as indicated in the table, replace the door lock switch.
Passenger's Side
1. Disconnect the negative battery cable..
2. Remove the power window subswitch cover..
3. Remove the door lock switch..

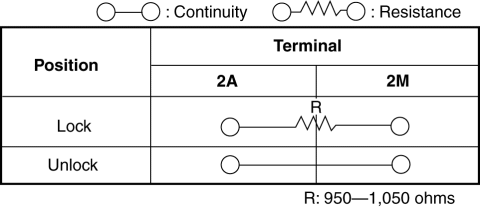

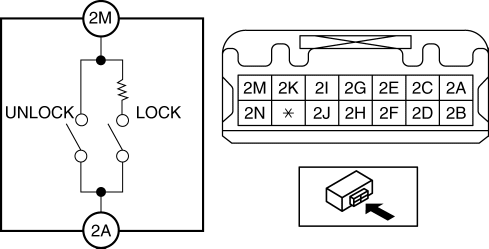

4. Verify that the continuity is as indicated in the table.
-
If not as indicated in the table, replace the door lock switch.
Door Lock Switch Removal/Installation
Driver's Side
NOTE:
The driver's side door lock switch cannot be removed as a single unit because
it is built into the power window main switch. If the driver's side door lock ...
Other materials:
Awd Control Module Inspection
NOTE:
AWD CM terminal voltage can vary depending on measuring conditions and vehicle
aging, resulting in misdiagnosis. Therefore, it is necessary to perform an overall
inspection of the input/output systems and AWD CM to determine which part is
malfunctioning.
With the AWD C ...
Power Metal Oxide Semiconductor Field Effect Transistor (Power Mos Fet) [Full
Auto Air Conditioner]
Purpose
The power MOS FET controls the blower motor rotation speed.
Function
The power MOS FET controls the supply voltage to the blower motor based on
the gate voltage sent from the climate control unit, and adjusts the fan rotation
speed (airflow volume).
Constructi ...
Side Sill Panel Removal [Panel Replacement]
Symbol Mark
Removal Procedure
Side sill (front side)
1. Rough cut the 2 locations indicated by (A) shown in the figure.
2. Drill the 18 locations indicated by (B) shown in the figure.
3. Remove the cabin side outer frame (outer side sill).
Side sill (component)
1. Rough cut the 3 l ...
