Mazda CX-5 Service & Repair Manual: Differential Oil Temperature Sensor Removal/Installation
WARNING:
-
Hot differential oil may cause severe burns. Do not perform maintenance while differential oil is hot.
1. Disconnect the negative battery cable.
2. Disconnect the differential oil temperature sensor connector.

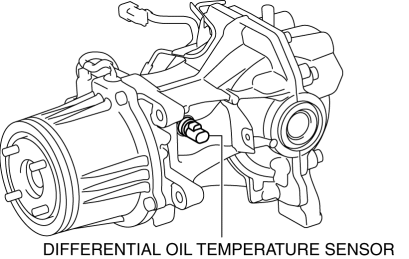

3. Remove the differential oil temperature sensor.
4. Install the differential oil temperature sensor.
-
Tightening torque
-
13—17 N·m {133—173 kgf·cm, 116—150 in·lbf}
5. Connect the differential oil temperature sensor connector.
6. Connect the negative battery cable..
