Purpose, Function
-
The differential absorbs the rotation speed of the inside and outside wheel of a wheel set when the vehicle is cornering.

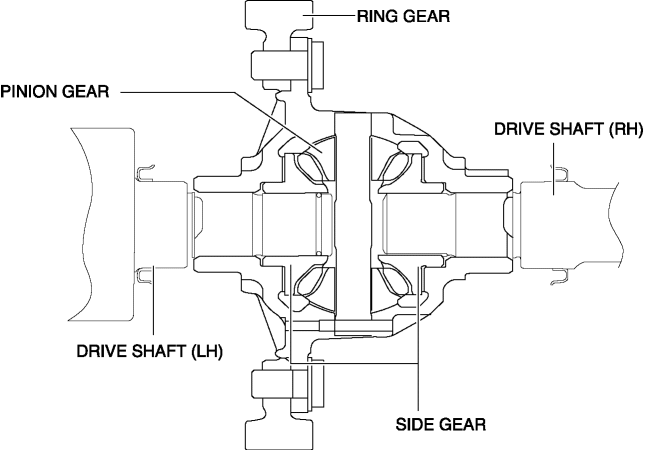

Construction
Operation

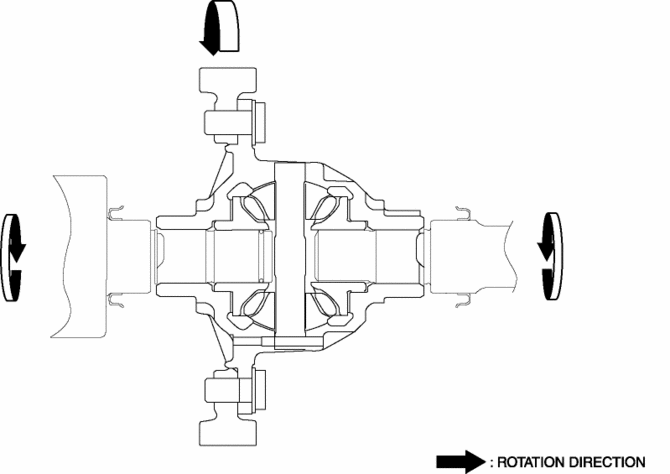

Driving in a straight line

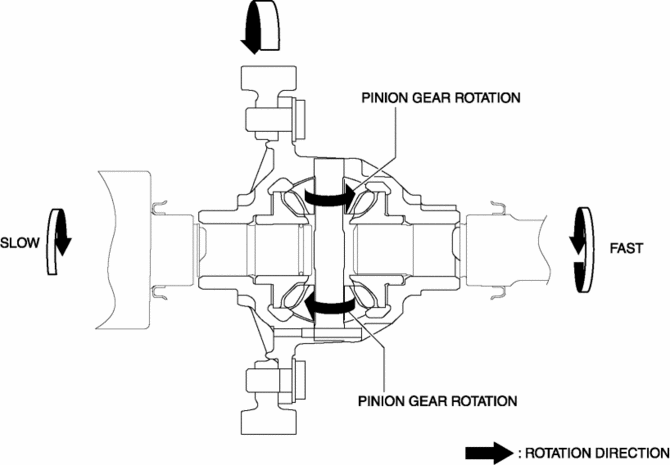

Cornering
Differential Oil Temperature Sensor Removal/Installation
WARNING:
Hot differential oil may cause severe burns. Do not perform maintenance while
differential oil is hot.
1. Disconnect the negative battery cable.
2. Disconnect the different ...
Differential [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
The differential absorbs the difference in the rotation speed between the
left and right driving wheels so that the vehicle drives smoothly when differences
occur due to ...
