Mazda CX-5 Service & Repair Manual: Cylinder Head Cover
Purpose, Function
-
The cylinder head cover prevents foreign material penetration and engine oil spatter.
-
The oil baffle plate reduces engine oil consumption by separating the engine oil from the blow-by gas.
Construction
-
The lightweight cylinder head cover is made of hard plastic with excellent noise absorption.
-

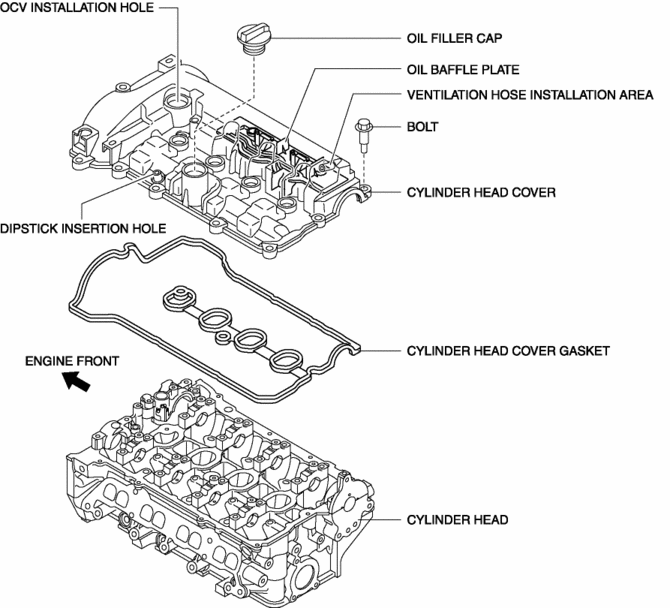

The cylinder head cover has the following parts:
Camshaft
Purpose, Function
The camshaft is rotated by receiving the rotation force of the crankshaft
via the timing chain. The valve is opened and closed according to the cam shape
at this time.
...
Cylinder Head Gasket Replacement
WARNING:
A hot engine can cause severe burns. Turn off the engine and wait until it
is cool before servicing.
Fuel vapor is hazardous. It can very easily ignite, causing serious inj ...
