Mazda CX-5 Service & Repair Manual: Crash Zone Sensor [Standard Deployment Control System]
Purpose
-
The crash zone sensor detects an impact during a frontal or frontal offset collision to the vehicle.
Function
-
The crash zone sensor converts the detected impact to an electrical signal.
Construction
-
The crash zone sensor is built into the clutch sensor.
-

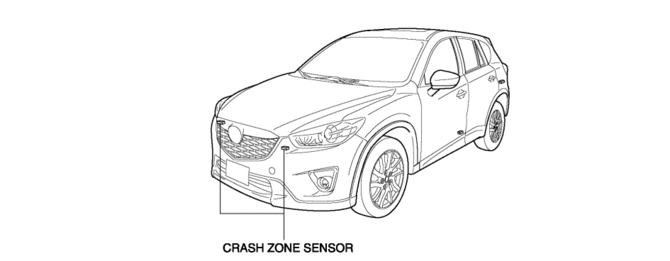

The crash zone sensor is installed to the shroud panel of the front bumper backside.
-
Two crash zone sensors are installed for independent impact detection on the left and right.
Operation
-

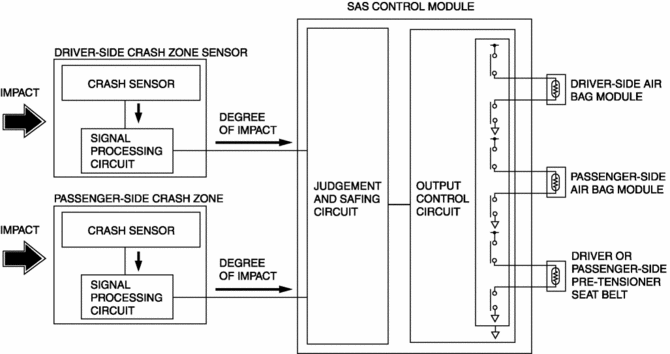

The impact from a frontal or frontal offset collision to the vehicle is transmitted to the crash zone sensor.
-
The crash sensor built into the crash zone sensor detects the impact and converts the impact into an electrical signal at the signal processing circuit.
-
The crash zone sensor sends a signal indicating the degree of impact, which is converted to an electrical signal, to the SAS control module.
Fail-safe
-
Function not equipped.
Crash Zone Sensor Removal/Installation [Standard Deployment Control System]
WARNING:
Handling the crash zone sensor improperly can accidentally deploy the air
bags and pre-tensioner seat belts, which may seriously injure you. Read the
air bag system service warn ...
Curtain Air Bag Module Removal/Installation [Standard Deployment Control System]
WARNING:
Handling the air bag module improperly can accidentally deploy the air bag
module, which may seriously injure you. Read the air bag system service warnings
and cautions before h ...
