Mazda CX-5 Service & Repair Manual: Cowl Panel Removal/Installation

Mazda CX-5 Service & Repair Manual / Body / Body Exterior, Frame / General / Cowl Panel Removal/Installation

1. Disconnect the negative battery cable..

2. Remove the following parts:

a. Windshield wiper arm and blade.

b. Cowl grille.

c. Windshield wiper motor.

d. Keyless beeper.

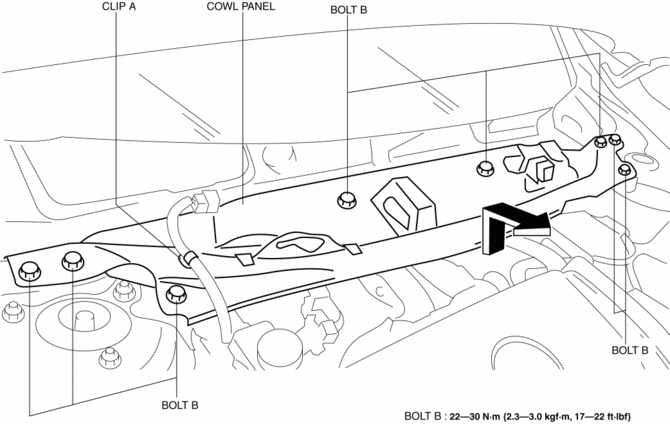

3. Remove clips A.


4. Remove bolts B.

5. Remove the cowl panel in the direction of the arrow shown in the figure.

6. Install in the reverse order of removal.
