Mazda CX-5 Service & Repair Manual: Corner Plate Removal [Panel Replacement]

Mazda CX-5 Service & Repair Manual / Body / Body Exterior, Frame / Frame / Corner Plate Removal [Panel Replacement]

Symbol Mark


Removal Procedure

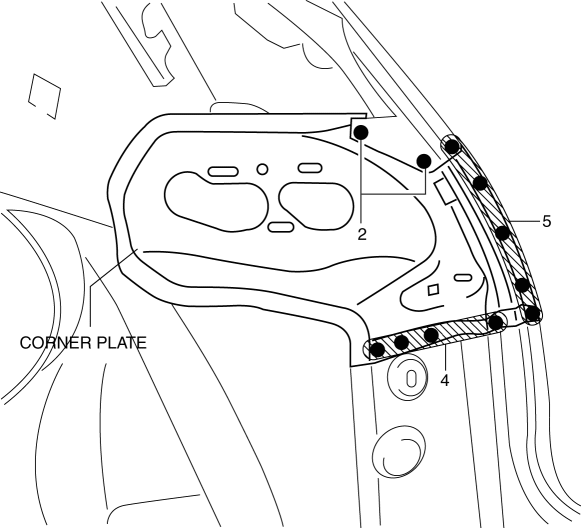

1. Drill the 11 location shown in the figure.


2. Remove the corner plate.

Corner Plate Installation [Panel Replacement]
Symbol Mark Installation Procedure 1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions. 2. Drill holes for the plug welding before inst ...

Dumping Sheet Replacement [Water Proof And Rust Preventive]
After repairing the body, attach the dumping sheet to the location shown in the figure for noise insulation. ...
