Mazda CX-5 Service & Repair Manual: Corner Junction Removal [Panel Replacement]

Mazda CX-5 Service & Repair Manual / Electrical / Fuses & Junction Blocks / Corner Junction Removal [Panel Replacement]

Symbol Mark


Removal Procedure

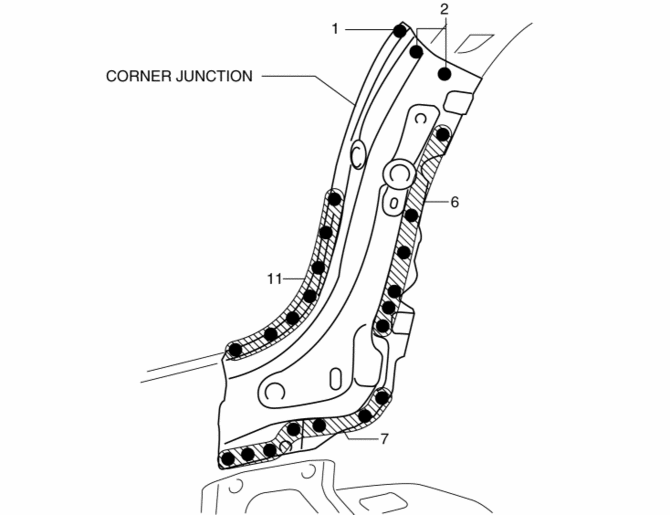

1. Drill the 27 locations shown in the figure.


2. Remove the corner junction.

Corner Junction Installation [Panel Replacement]
Symbol Mark Installation Procedure 1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions. 2. Drill holes for the plug welding before inst ...
