Mazda CX-5 Service & Repair Manual: Cooling Fan Motor Inspection
Part Inspection
1. Verify that the battery is fully charged..
2. Disconnect the cooling fan motor connector (2 terminals).

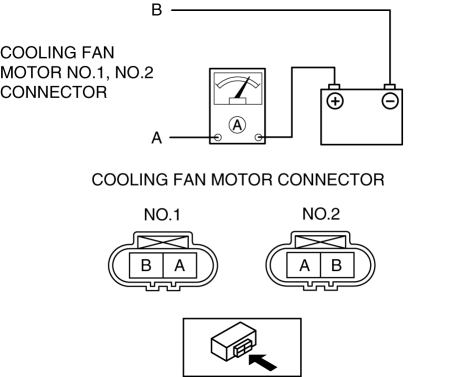

3. Install a tester and battery to the cooling fan motor connector (2 terminals) as shown in the figure.
4. Verify that each cooling fan motors operate smoothly at the standard current.
-
If there is any malfunction, replace the applicable part.
-
Cooling fan motor No.1, No.2 standard current
-
4.5—8.5 A [12 V]
Cooling Fan Component
Purpose, Function
The cooling fan rotates according to vehicle conditions and enhances the
cooling efficiency of the radiator.
Structural View
Operation
For the ...
Cooling Fan Motor Removal/Installation
WARNING:
Never remove the cooling system cap or loosen the radiator drain plug while
the engine is running, or when the engine and radiator are hot. Scalding engine
coolant and steam may ...
