Mazda CX-5 Service & Repair Manual: Conventional Brake System
Outline
-
A brake pedal with an intrusion minimizing mechanism has been adopted. As a result, driver safety has been improved.
-
A small diameter long-stroke type master cylinder has been adopted, improving operability and response.
-
A vacuum pump has been adopted, improving braking force.
-
A large diameter, ventilated disc-type front brake has been adopted, improving braking force.
-
A large diameter, solid disc-type rear brake has been adopted, improving braking force.
Structural View

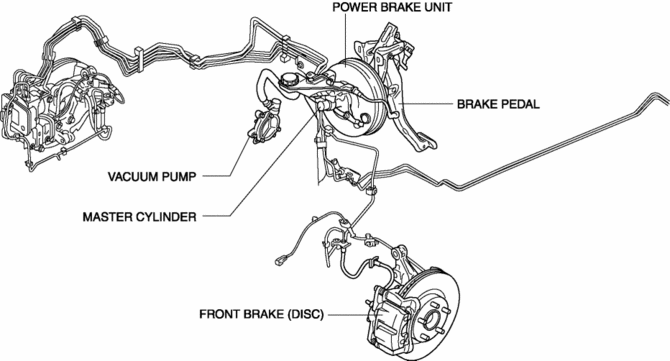

Vehicle front side

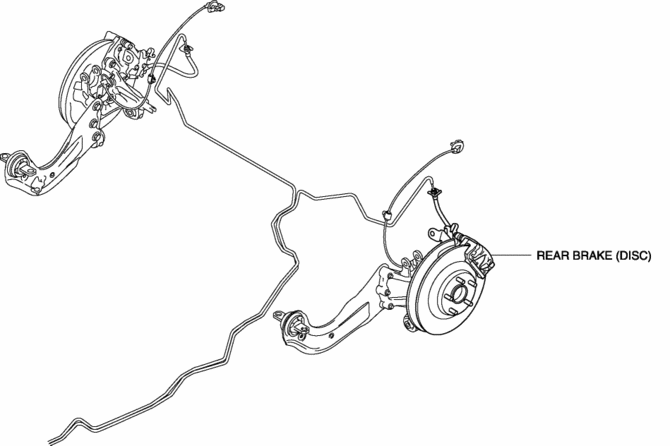

Vehicle rear side
Brakes SST
49 F043 002
Wrench
49 U043 004A
Oil pressure gauge
(Part of 49 U043 0A0A)
49 U043 005
Joint
(Part of 49 U043 0A0A)
...
Disc Pad (Front) Replacement
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, depress the brake pedal a few times, rotate the wheel
by hand, and verify that t ...
