Mazda CX-5 Service & Repair Manual: Coil Antenna
Purpose
-
Sends the ID data programmed to the electronic transmission device (transponder) in the remote transmitter to the start stop unit.
Function
-
A magnetic field occurs around the push button start.
Construction, Operation
-

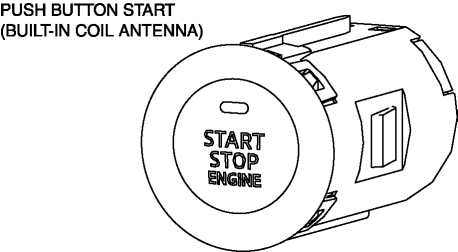

The coil antenna built into the push button start sends a signal to the transponder and sends the returned signal to the start stop unit.
Fail-safe
-
Function not equipped.
Center Roof Antenna Removal/Installation
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Front scuff plate.
b. Rear scuff plate.
c. B-pillar lower trim.
d. Front seat belt adjusting cover.
e. Front se ...
D Pillar Speaker Inspection
D-pillar speaker
1. Disconnect the negative battery cable..
2. Remove the following parts:
a. Trunk board.
b. Trunk end trim.
c. Rear scuff plate.
d. Trunk side trim.
e. D-pillar trim.
...
