Mazda CX-5 Service & Repair Manual: Clutch Disc Inspection [C66 M R]
Operation Inspection
1. Inspect the lining surface for discoloration and grease adhesion.
2. Inspect the torsion spring for weakness and the rivets for looseness.
3. Using a vernier caliper, measure the depth between the lining surface and the rivet head.
-
Minimum clutch disc thickness
-
0.3 mm {0.01 in}
-
If it is less than the minimum specification, replace the clutch disc..

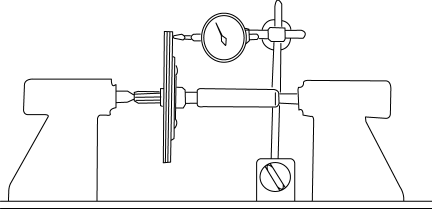

4. Measure the clutch disc runout using a dial gauge.
-
Maximum clutch disc runout
-
0.7 mm {0.03 in}
-
If it exceeds the maximum specification, replace the clutch disc..
Clutch Cover Inspection [C66 M R]
1. Remove the clutch cover..
2. Perform the following procedures to inspect the clutch cover.
If it exceeds the maximum specification, replace the clutch cover..
a. Measure the wear of ...
Clutch Fluid Inspection [C66 M R]
NOTE:
A common reserve tank is used for the clutch system and brake system.
1. Verify that the clutch fluid is between the MIN mark and the MAX mark.
Verify that there is no ...
