Mazda CX-5 Service & Repair Manual: Check Valve Inspection
Except U.S.A. And CANADA
1. Remove the check valve..

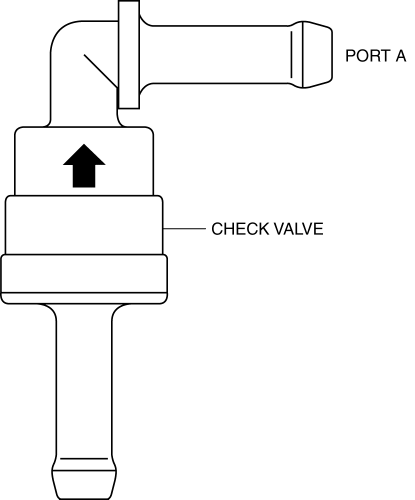

2. Verify that there is no airflow when positive pressure is applied to port A.
-
If there is airflow, replace the check valve..
3. Verify that there is no airflow when negative pressure is applied to port A.
-
If there is no airflow, replace the check valve..
Charcoal Canister
Purpose, Function
Absorbs evaporative gas flowing from the fuel tank to prevent release of
the gas into the atmosphere.
Construction
The charcoal canister is installed near the ...
Check Valve Removal/Installation
Except U.S.A. And CANADA
1. Remove the floor under cover..
2. Remove in the order indicated in the table.
1
Evaporative hose
2
Check valve
...
