Mazda CX-5 Service & Repair Manual: Check Valve
Except U.S.A. And CANADA
Purpose, function
-
The check valve maintain the pressure in the fuel tank at constant pressure.
Construction
-
The check valve is installed to the side of the charcoal canister.
-

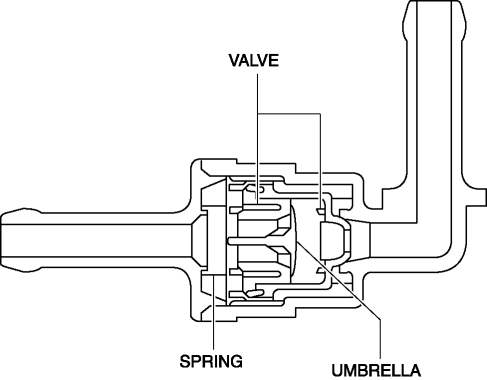

Mainly consists of valve, umbrella, and spring.
Operation
-
The valve moves in response to the difference in air pressure between the fuel tank side and the atmospheric side, thereby changing the path of airflow.
-
When the pressure in the fuel tank becomes negative due to fuel consumption or other factors, the path opens, drawing atmospheric air into the fuel tank.
Check Valve Removal/Installation
Except U.S.A. And CANADA
1. Remove the floor under cover..
2. Remove in the order indicated in the table.
1
Evaporative hose
2
Check valve
...
