Mazda CX-5 Service & Repair Manual: Charging System Warning Light [Skyactiv G 2.0]
Purpose, Function
-
Warns the driver of a charging system malfunction.
Construction
-

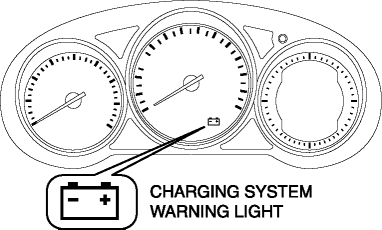

The charging system warning light is built into the instrument cluster..
Operation
-
Illuminates when a malfunction occurs in the charging system and DTCs is stored in the PCM.
Charging System [Skyactiv G 2.0]
Outline
Regulator-less generator (built-in power transistor) has been adopted.
A generator using two delta connection type stator coils has been adopted.
Structural View
Stru ...
