Mazda CX-5 Service & Repair Manual: Center Roof Antenna
Purpose, Function
-
Converts radio broadcast waves to electric signals and sends the signals to the audio unit.

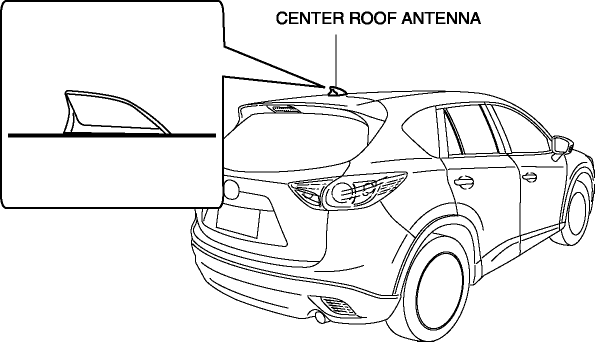

Construction
-
A center roof antenna has been adopted which does not require retraction or removal before going through an automatic car wash machine.
-
The center antenna has an integrated antenna amplifier which amplifies the electric signal.

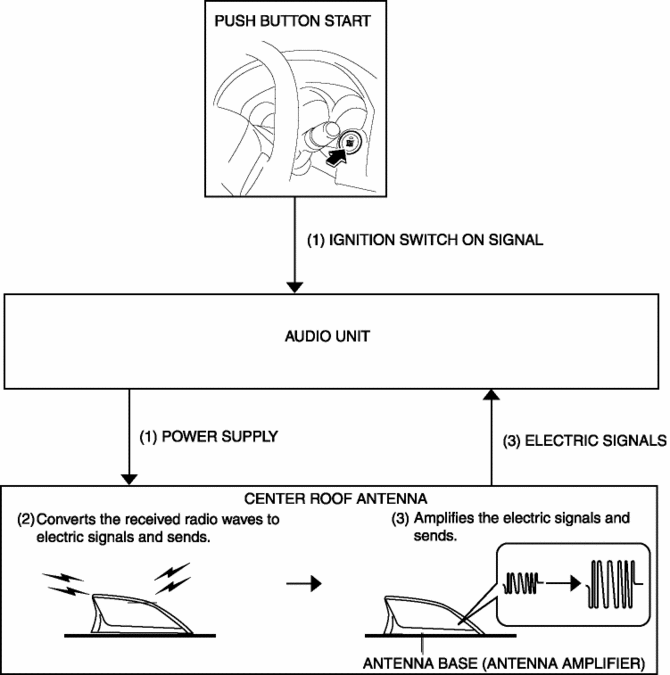

Operation
-
When the ignition is switched to ACC or ON (engine off or on), power is supplied from the audio unit to the antenna amplifier inside the center roof antenna.
-
The center roof antenna converts the received radio waves of a radio broadcast to an electric signal.
-
The center roof antenna amplifies the converted electric signal using the antenna amplifier and sends the signal to the audio unit.
Fail-safe
-
Function not equipped.
