Mazda CX-5 Service & Repair Manual: Center Panel Removal/Installation

Mazda CX-5 Service & Repair Manual / Body / Body Interior / General / Center Panel Removal/Installation

1. Disconnect the negative battery cable..

2. Remove the decoration panel.

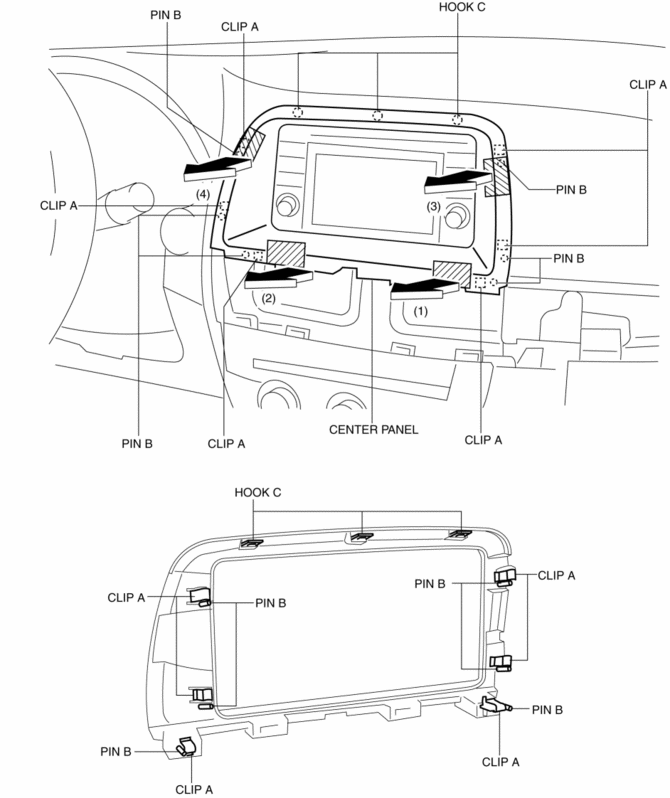

3. Take the shaded area shown in the figure, and pull the center panel in the direction of the arrow in the order of (1), (2), (3), (4) and remove it while detaching clips A, pins B and hooks C.


4. Install in the reverse order of removal.
