Mazda CX-5 Service & Repair Manual: Center Accessory Socket Inspection

Mazda CX-5 Service & Repair Manual / Accessories / Power Sockets / Center Accessory Socket Inspection

1. Remove the center accessory socket..

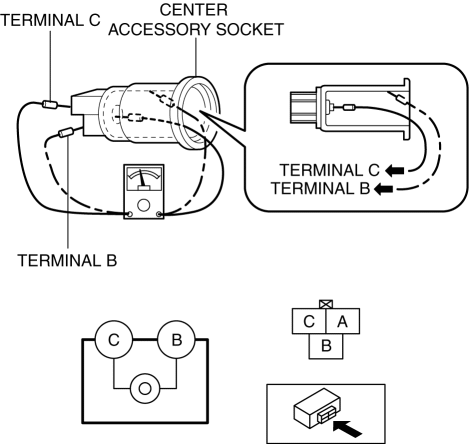

2. Connect the tester probe to the position shown in the figure and verify that there is continuity.


Accessory Socket
Purpose By inserting the plug of an electrical device, 12 V (maximum 120 W) of power is supplied enabling use of the electrical device in the vehicle. Function Front accessory socket ...

Center Accessory Socket Removal/Installation
1. Disconnect the negative battery cable.. 2. Remove the upper console.. 3. Insert a tape-wrapped flathead screwdriver into the gap between the cap tab and socket. 4. Move the flathead scr ...
