Mazda CX-5 Service & Repair Manual: Catch Tank
Purpose, Function
-
Suppresses pulsation occurring before evaporative gas is inducted into the intake manifold.
Construction
-

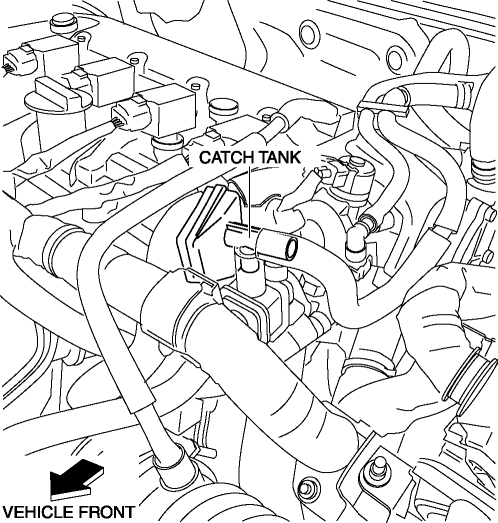

The catch tank is installed in the engine compartment.
Operation
-

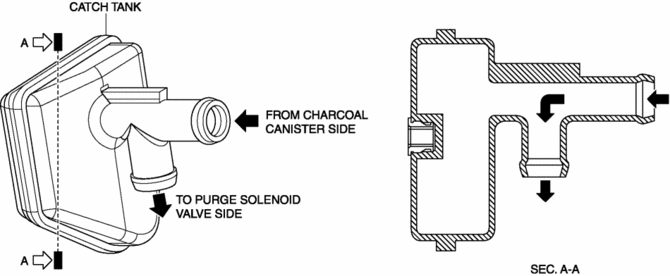

When evaporative gas flows from the charcoal canister to the purge solenoid valve, pulsation is suppressed by passing the evaporative gas through the hollowing of the catch tank.
Catch Tank Inspection
1. Remove the catch tank..
2. Plug the purge solenoid valve side into the catch tank.
3. Inspect for air leakage when blowing air using your mouth into the charcoal
canister side.
If ...
Charcoal Canister Inspection
U.S.A. And CANADA
Leakage inspection
1. Perform the following procedures:
Do not operate CV solenoid valve.
Assemble the hose used for inspection to port A.
Cover ports B an ...
