1. Disconnect the negative battery cable..

CAUTION:

Always disconnect the negative battery cable before performing the cargo compartment light bulb removal. Otherwise, the circuit may be shorted resulting in damage to the related parts such as the rear body control module (RBCM).

2. Remove the cargo compartment light..

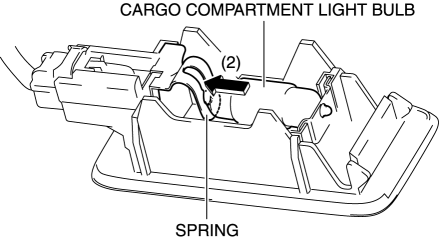

3. Press the cargo compartment light spring in the direction of the arrow (2) shown in the figure and detach it and the cargo compartment light bulb.

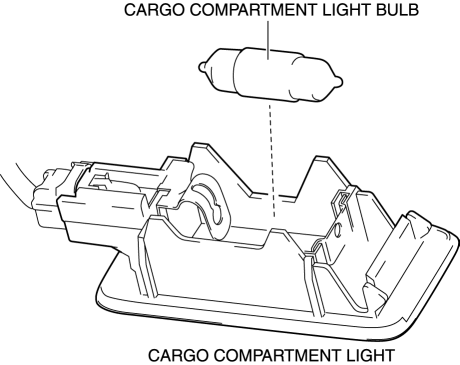

4. Remove the cargo compartment light bulb.

5. Install in the reverse order of removal.
