Mazda CX-5 Service & Repair Manual: Canister Vent (Cv) Solenoid Valve
U.S.A. And CANADA
Purpose, function
-
Seals the atmosphere side of the charcoal canister during EVAP leak check monitoring.
Construction
-

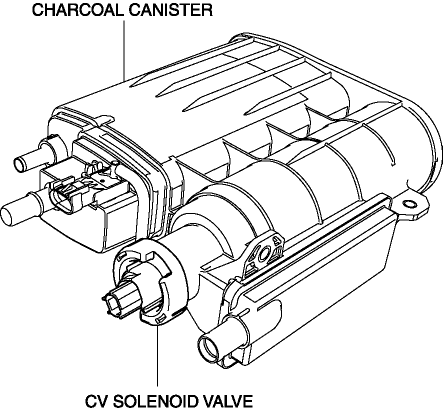

Included in the charcoal canister.
-

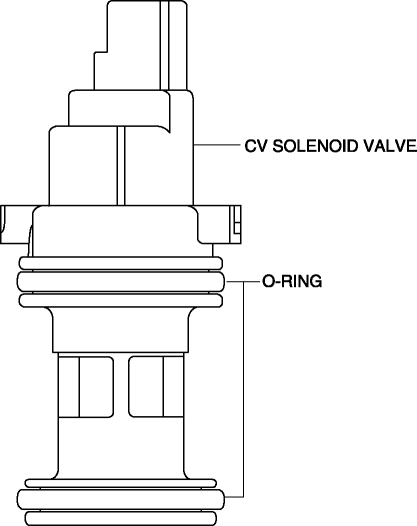

The CV solenoid valve is consists of O-rings.
Operation
-
According to the control signal from the PCM, the coil is energized and the plunger opens/closes the CV solenoid valve.
Fail-safe
-
Function not equipped.
Canister Vent (Cv) Solenoid Valve Removal/Installation
U.S.A. And CANADA
1. Disconnect the negative battery cable..
2. Remove the floor under cover (LH)..
3. Disconnect the evaporative hose No.2..
4. Remove in the order indicated in the table.
...
Catalytic Converter
Purpose, Function
Purifies contaminants in the exhaust gas by utilizing the chemical reactions
of the three-way catalytic converter.
A WU-TWC and a TWC have been adopted.
WU ...
