Mazda CX-5 Service & Repair Manual: Brake Switch Inspection
CAUTION:
-
Inspect the brake switch with it installed to the brake pedal, otherwise the brake switch may not operate normally. If the brake switch is removed from the brake pedal, replace the brake switch with a new one.
1. Remove the lower panel..
2. Remove the front heat duct (LH)..
3. Disconnect the brake switch connector.

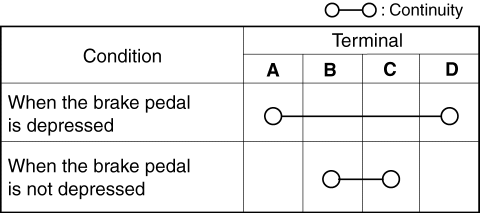

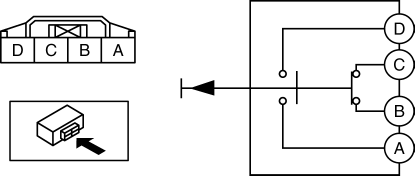

4. Verify that the continuity is as indicated in the table.
-
If not as indicated in the table, replace the brake switch..
Brake Fluid Level Sensor Inspection
1. Disconnect the brake fluid level sensor connector from the master cylinder.
2. Inspect for continuity according to fluid level between the brake fluid level
sensor terminals.
If no ...
