Mazda CX-5 Service & Repair Manual: Brake Fluid Inspection

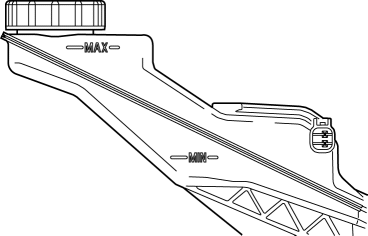

1. Verify that the brake fluid level in the brake fluid reserve tank is between the MAX and MIN marks.
-
If the brake fluid level is below the MIN mark, add brake fluid.
