Mazda CX-5 Owners Manual: Bluetooth®
Bluetooth® Hands-Free
When a Bluetooth® device (mobile phone) is connected to the vehicle's Hands-Free unit via radio wave transmission, a call can be made or received by pressing the talk button, pick-up button, hang-up button, or voice command on the steering wheel, or by operating the panel. For example, even if a device (mobile phone) is in your coat pocket, a call can be made without taking the device (mobile phone) out and operating it directly.
Bluetooth® Audio
When a portable audio unit equipped with the Bluetooth® communication function is programmed to the Bluetooth® unit, you can listen to music recorded on the programmed portable audio device from the vehicle's speakers. It is not necessary to connect the portable audio device to the vehicle's external input terminal. After programming, operate the vehicle audio control panel to play/stop the audio.
Applicable Bluetooth® specification
Ver. 2.0 or higher
Response profile
• HFP (Hands-Free Profile) Ver. 1.5 • DUN (Dial-up Networking Profile) Ver. 1.1 • PBAP (Phone Book Access Profile) Ver. 1.0 • OPP (Object Push Profile) Ver. 1.1

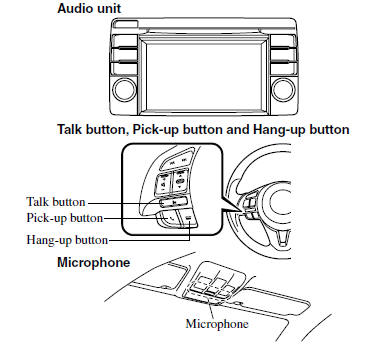

Component Parts
Audio unit (Type B)
The audio unit (Type B) is used for volume adjustment and touch panel operation.
Bluetooth® information is displayed in the display. The screen is switched by touching the tab for each function to be used.
Do not press the panel strongly or press it with a sharp-pointed object.
Microphone (Hands-Free)
The microphone is used for speaking voice commands or exchanging conversation.
Talk button, Pick-Up button and Hang-Up button (Hands-Free)
The basic functions of Bluetooth® Hands-Free can be used for such things as making calls or hanging up using the talk button, pick-up button and hang-up button on the steering wheel.
Volume adjustment
The power/volume dial of the audio unit is used to adjust the volume. Turn the dial to the right to increase volume, to the left to decrease it.
The volume can also be adjusted using the volume button on the steering wheel.
Conversation volume and the volume of the voice guidance and ringtone can each be set in advance.
1. Touch the
on-screen tab to display
the Bluetooth® setting screen.
2. Touch the
on-screen button to display
the volume adjustment screen.
3. (Volume up)
Touch the
on-screen
button.
(Volume down)
Touch the
on-screen
button.
4. Prompt:
“Phone call will be at this volume.” or “Voice guidance will be at this volume.”
NOTE
The volume of the audio unit cannot be adjusted while Bluetooth® Hands-Free is being used.
Bluetooth® Preparation
Device programming (Pairing)
To use Bluetooth® audio and Hands-Free, the device equipped with Bluetooth® has to be programmed to the unit using the following procedure. A maximum of seven devices including Bluetooth® audio devices and Hands-Free mobile phones can be programmed.
NOTE
• For your safety, a device can be programmed only when the vehicle is parked. If the vehicle starts to move, the pairing procedure will end. Park the car in a safe place before programming.
• The communication range of a Bluetooth® equipped device is about 10 meters (32 ft) or less.
CAUTION
Some Bluetooth® mobile devices are not compatible with the vehicle.
Consult an Authorized Mazda Dealer, Mazda's call center or Web support center for information regarding Bluetooth® mobile device compatibility:
● U.S.A.
Phone: 800-430-0153
Web: www.MazdaUSA.com/ bluetooth
● Canada
Phone: 800-430-0153
Web: www.mazdahandsfree.ca
● Mexico
Center of Attention to Client (CAC)
Phone: 01-800-01-MAZDA
Web: www.MazdaUSA.com/ bluetooth
Pairing Procedure
1. Touch the
on-screen button.
2. Touch the
on-screen button. The
list of pairing devices is displayed.
3. Touch the
on-screen button to display
the message and switch to the device operation.
4. Using your device, perform a search for the Bluetooth® device (Peripheral device).
5. Select “Mazda” from the device list searched by the device.
6. (Device with Bluetooth® version 2.0)
Input the displayed 4-digit pairing code into the device.
(Device with Bluetooth® version 2.1 or higher)
• Just Works is detected
The pairing is performed automatically.
• Numeric Comparison is detected
Verify the displayed 6-digit code on the audio unit, which is also displayed on the device, and touch the on-screen button.
7. (Device with PBAP profile)
Call history (incoming/outgoing history) for the device is downloaded automatically.
After a device is registered, the system automatically identifies the device. By activating Bluetooth® Hands-Free again, or by activating Bluetooth® Hands-Free first after switching the ignition from OFF to ACC, the device connection condition is indicated in the display.
Device selection
If several devices have been programmed, the Bluetooth® unit links the device last programmed. If you would like to link a different programmed device, it is necessary to change the link. The order of device priority after the link has been changed is maintained even when the ignition is switched off.
NOTE
If the device name cannot be displayed, “...” is added at the end of the title which is displayed.
Connecting other devices
1. Touch the
on-screen tab.
2. Touch the device name which you want to connect to display the device information
screen.
3. Touch the
on-screen button to connect
as a Hands-Free device. Touch the
on-screen button to connect as a Bluetooth® audio device.
4. Touch the
on-screen button.
5. (Device with PBAP profile)
Call history (incoming/outgoing history) for the device is downloaded automatically.
If the connection is completed, the device name is displayed. Touch the
onscreen button to display the device
list screen and display the
or
icon in the new device name which
is connected.
Disconnecting a device
1. Touch the
on-screen tab.
2. Touch the
on-screen button.
3. Touch the device name which is currently connected to display the device information
screen.
4. Touch the
on-screen button to disconnect
the Hands-Free device.
Touch the
on-screen button to disconnect
the audio device.
5. Touch the
on-screen button.
Registered device deletion
1. Touch the
on-screen tab.
2. Touch the
on-screen button.
3. Touch the device name which you want to delete.
4. Touch the
on-screen button.
5. Touch the
on-screen button.
NOTE
If you want to delete all of the pairing devices, perform the restore default.
Changing PIN code
PIN code (4 digits) can be changed.
1. Touch the
on-screen tab.
2. Touch the
on-screen button.
3. Delete the PIN code which is currently set.
4. Input the new PIN code to be set.
5. Touch the
on-screen button.
Restore Default
All the pairing device information and phonebook data can be deleted.
1. Touch the
on-screen tab.
2. Touch the
on-screen button.
3. Touch the
on-screen button.
4. Touch the
on-screen button.
Available Language
The Bluetooth® Hands-Free System applies to the following languages:
• English • Spanish • French Refer to Setup 5.
Voice Recognition
The Mazda Bluetooth® Hands-free system can be used to make calls using voice recognition which includes numerous convenient commands. In this section, the basic operation of the voice recognition is explained.
Activating Voice Recognition
To Activate the Main Menu: Press the talk-button.
To Activate the Phone Menu: Press the pick-up button. After activating the main menu, say “Phone”.
To Activate the Navi Menu: After activating the main menu, say “Navigation”.
NOTE
For voice recognition details with the navigation system, refer to the separate “NAVIGATION SYSTEM Owner's Manual”.
Ending Voice Recognition
Use one of the following methods:
• Press and hold the talk-button.
• Press the hang-up button.
Skipping Voice Guidance (for faster operation)
Press and release the talk-button.
NOTE
• The Bluetooth® Hands-Free system is operable several seconds after the ignition is switched to ACC or ON (requires less than 15 seconds).
• When operating the audio unit or the A/C while using Bluetooth® Hands-Free, the beep sounds or voice guidance (audio unit)/ cannot be heard.
Tutorial
The tutorial explains how to use Bluetooth® Hands-Free.
To activate the tutorial, do the following:
1. Press the talk button.
2. Prompt:
“Ready” 3. Say: [Beep] “Tutorial” 4. Follow the prompts to receive the appropriate voice guidance instructions.
Commands useable anytime during voice recognition
“Help” , “Go Back” , “Cancel” , “Display OFF/Display ON” are commands which can be used at anytime during voice recognition.
Help function use
The help function informs the user of all the available voice commands under the current conditions.
1. Say: [Beep] “Help” 2. Follow the prompts to receive the appropriate voice guidance instructions.
Returning to previous operation
This command is for returning to the previous operation while in the voice recognition mode.
Say: [Beep] “Go Back”
Cancel
The Bluetooth® Hands-Free system transitions to standby status if the following operation is performed while the system is activating.
Say: [Beep] “Cancel”
Display OFF/Display ON
The audio unit display can be switched off/on by voice recognition operation.
Say: [Beep] “Display OFF” (or “Display ON”)
To prevent a deterioration in the voice recognition rate and voice quality, the following points should be observed:
• The Hands-free system cannot perform voice recognition while voice guidance or a beep sound is operating. Wait until the voice guidance or the beep sound is finished before saying your commands.
• Dialects or different wording other than Hands-Free prompts cannot be recognized by voice recognition. Speak in the wording specified by the voice commands.
• It is not necessary to face the microphone or approach it. Speak the voice commands while maintaining a safe driving position.
• Do not speak too slow or too loud.
• Speak clearly, without pausing between words or numbers.
• Close the windows and/or the moonroof to reduce loud noises from outside the vehicle, or turn down the airflow of the air-conditioning system while Bluetooth® Hands-Free is being used.
• Make sure the vents are not directing air towards the microphone.
NOTE
If the voice recognition performance is not satisfactory.
Refer to Troubleshooting 1.
