Mazda CX-5 Service & Repair Manual: Blower Motor Removal/Installation [Manual Air Conditioner]
1. Disconnect the negative battery cable..
2. Remove the dashboard under cover..

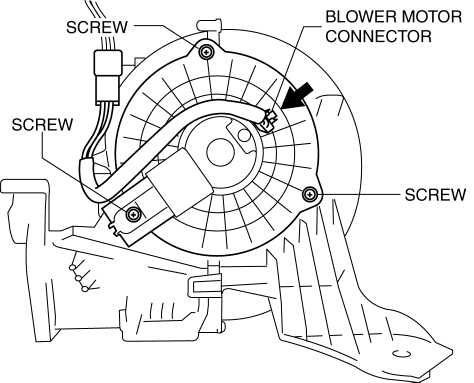

3. Disconnect the connector.

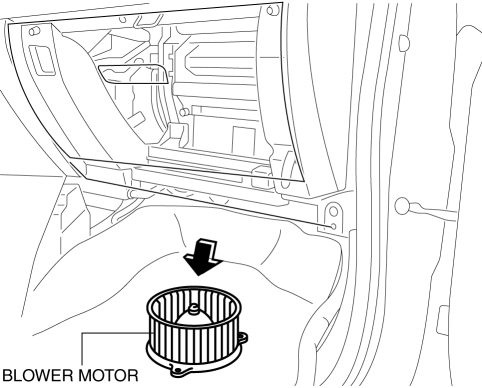

4. Remove the screws.
5. Remove the blower motor.
6. Install in the reverse order of removal.
Blower Motor Removal/Installation [Full Auto Air Conditioner]
1. Disconnect the negative battery cable..
2. Remove the dashboard under cover..
3. Disconnect the connector.
4. Remove the screws.
5. Remove the blower motor.
6. Install in the reve ...
Blower Motor [Full Auto Air Conditioner]
Purpose
The blower motor sends airflow into the cabin.
Function
The blower motor rotates the blower fan to create airflow and sends out the
airflow in the blower unit and A/C un ...
