Mazda CX-5 Service & Repair Manual: Blower Motor Removal/Installation [Full Auto Air Conditioner]
1. Disconnect the negative battery cable..
2. Remove the dashboard under cover..

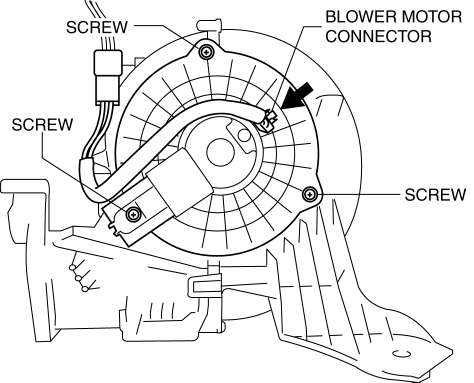

3. Disconnect the connector.
4. Remove the screws.

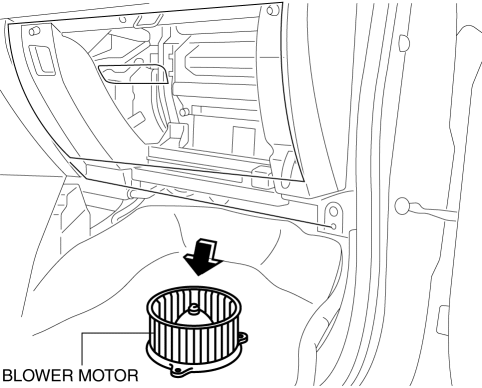

5. Remove the blower motor.
6. Install in the reverse order of removal.
Blower Motor Inspection [Manual Air Conditioner]
1. Connect battery positive voltage to blower motor terminal B, connect terminal
A to ground, and then verify its operation.
If there is any malfunction, replace the blower motor.
...
Blower Motor Removal/Installation [Manual Air Conditioner]
1. Disconnect the negative battery cable..
2. Remove the dashboard under cover..
3. Disconnect the connector.
4. Remove the screws.
5. Remove the blower motor.
6. Install in the reve ...
