Mazda CX-5 Service & Repair Manual: Blower Motor Inspection [Manual Air Conditioner]

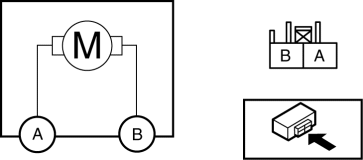

1. Connect battery positive voltage to blower motor terminal B, connect terminal A to ground, and then verify its operation.
-
If there is any malfunction, replace the blower motor.
Blower Motor Inspection [Full Auto Air Conditioner]
1. Connect battery positive voltage to blower motor terminal B, connect terminal
A to ground, and then verify its operation.
If there is any malfunction, replace the blower motor.
...
Blower Motor Removal/Installation [Full Auto Air Conditioner]
1. Disconnect the negative battery cable..
2. Remove the dashboard under cover..
3. Disconnect the connector.
4. Remove the screws.
5. Remove the blower motor.
6. Install in the reve ...
