Mazda CX-5 Service & Repair Manual: Battery [Skyactiv G 2.0]
Purpose, Function
-
The battery stores electricity generated by the generator. In addition, it supplies power to electronic devices if necessary.
Construction
-

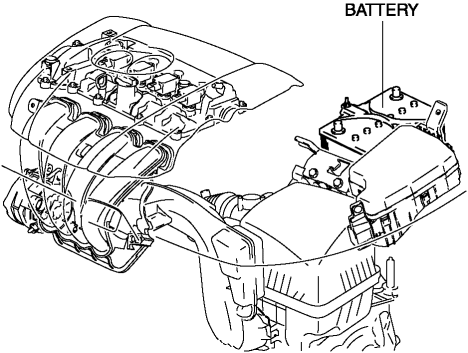

The battery is installed in the engine compartment. (vehicle left)
Fail-safe
-
Function not equipped.
Battery Removal/Installation [Skyactiv G 2.0]
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
1
Negative battery cable
(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECT ...
Negative Battery Cable Disconnection/Connection [Skyactiv G 2.0]
WARNING:
Before removing the SRS air bag system-related parts, always disconnect the
negative battery cable and wait for 1 min. or more to allow the back-up power
supply to deplete its s ...
