Mazda CX-5 Service & Repair Manual: Automatic Transaxle Warning Light [Fw6 A EL, Fw6 Ax EL]
Purpose/Function
-
The automatic transaxle warning light illuminates when the transaxle has malfunction.
Construction
-

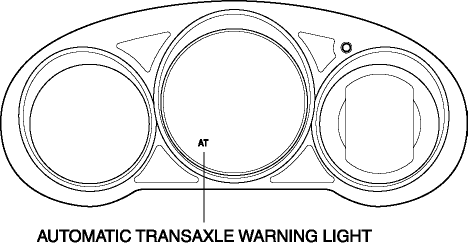

The automatic transaxle warning light is built into the instrument cluster.
Operation
-

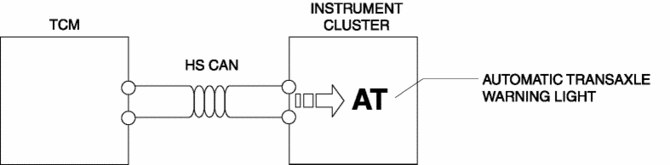

If the transmission has a malfunction, the TCM sends an automatic transaxle warning light illumination request signal to the instrument cluster.
-
The TCM illuminates the automatic transaxle warning light for approx. 2 s
after the ignition is switched ON to perform a bulb check of the automatic transaxle warning light.
