Mazda CX-5 Service & Repair Manual: Auto Leveling Sensor
Purpose
-
Detects the vehicle height and outputs it to the AFS control module.
Function
-
Changes the detected vehicle height into a voltage value and outputs it to the AFS control module.

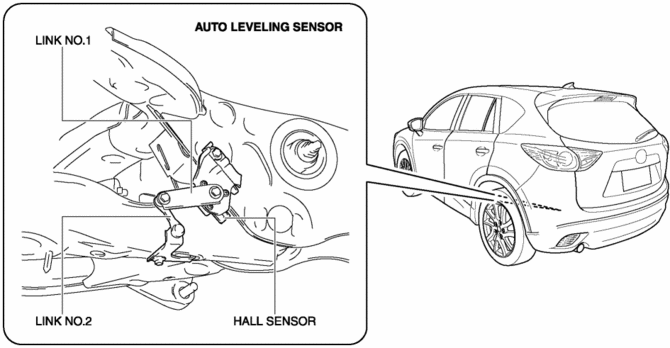

Construction
-
Installed to the rear cross member.
-
Consists of link No. 1, link No.2 and the Hall sensor.

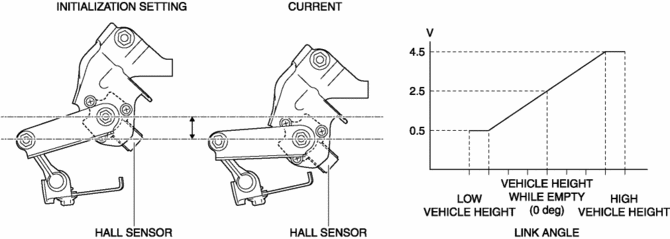

Operation
1. If the rear cross member slumps under a load and passengers, the auto leveling sensor link changes.
2. The auto leveling sensor fluctuates the vehicle height value based on the link angle, and outputs the vehicle height signal to the AFS control module.
Fail-safe
-
Function not equipped.
General
...
Auto Leveling Sensor Inspection
1. Disconnect the negative battery cable..
2. Remove the auto leveling sensor..
3. Prepare three dry cell batteries (1.5 V).
4. Connect the three dry cell batteries in a series.
5. Connect ...
