Mazda CX-5 Service & Repair Manual: Ambient Temperature Sensor Removal/Installation [Manual Air Conditioner]

Mazda CX-5 Service & Repair Manual / HVAC / A/C / Ambient Temperature Sensor Removal/Installation [Manual Air Conditioner]

1. Disconnect the negative battery cable..

2. Remove the front bumper..

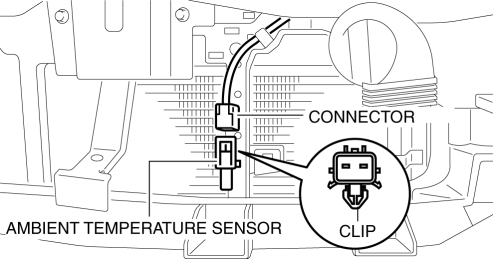

3. Disconnect the connector.


4. Remove the ambient temperature sensor.

5. Install in the reverse order of removal.
